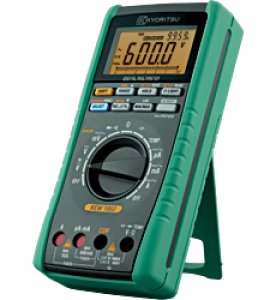

KYORITSU 1051/1052 KYORITSU 1061/1062

Category: Kyoritsu(KEW)



High Accuracy, High Performance and Reliable Measurements
• 0.09% basic DC accuracy
• Large display with 6,000 counts
• True-RMS Measurements
• True-RMS or MEAN value detection mode can be selected *
• Low-pass filter for motor drive measurements
• User calibration function
Safety design for industrial use
• Complies with IEC 61010-1 CAT.IV 600V,
CAT.III 1000V
• Terminal shutter to prevent incorrect test leads' insertion in current terminals
• Very wide operating temperature range from
-10 to 55ºC
Reliable support for data management *
• Large data internal memory *
  KEW 1052: 1,600 data (logging), 100 data (manual)
• Download data and Live Monitoring on a PC via the USB interface
(Option for USB Communication set) *
* Only for KEW 1052
KEW 1051 KEW 1052
Detection mode RMS MEAN/RMS (switch)
DC V 600.0mV/6.000/60.00/600.0/1000V
(Input impedance: 10MΩ [600mV/60/600/1000V], 11MΩ [6V])

|±0.09%rdg±2dgt (Basic accuracy)
AC V [RMS] 600.0mV/6.000/60.00/600.0/1000V
(Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V],
10MΩ<50pF [60/600/1000V])

|±0.5%rdg±5dgt (Basic accuracy)
DC A 600.0/6000µA/60.00/440.0mA/6.000/10.00A

|±0.2%rdg±2dgt (Basic accuracy)
AC A [RMS] 600.0/6000µA/60.00/440.0mA/6.000/10.00A

|±0.75%rdg±5dgt (Basic accuracy)
Ω 600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ

|±0.4%rdg±1dgt (Basic accuracy)
Continuity buzzer 600.0Ω (The buzzer turns on for resistances lower than 50±30Ω)
Diode test 2.000V|±1%rdg±2dgt
Open curcuit voltage: <3.5V (Approx. 0.5mA Measuring Current)
Capacitance 10.00/100.0nF/1.000/10.00/100.0/1000µF

|±2%rdg±5dgt (Basic accuracy)
Frequency 10.00~99.99/90.0~999.9Hz/0.900~9.999/9.00~99.99kHz

|±0.02%rdg±1dgt (Basic accuracy)
Temperature -50~600ºC|±2%rdg±2ºC (with the use of K-type Temperature probe)
Other functions Data Hold (D/H), Auto Hold (A/H), Range Hold (R/H),
Maximum value (MAX) *, Minimum value (MIN) *, Average value (AVG) *, Zero Adjustment (Capacitor, Resistance), Save to Memory *,
LCD backlight
Withstand voltage 6,880V/5 sec.
Applicable
standards		 IEC 61010-1 CAT.IV 600V, CAT.III 1000V Pollution degree 2,
IEC 61010-031, IEC 61326-1 (EMC)
Power source R6P (1.5V)×4 (Auto power off: approx. 20 minutes)
Dimensions 192(L)×90(W)×49(D) mm
Weight Approx. 560g (including batteries)
Accessories 7220A (Test leads), R6P×4, Instruction manual,
8926 (Fuse [440mA/1000V])×1 (included)
8927 (Fuse [10A/1000V])×1 (included)
* Only for KEW 1052







High Accuracy, High Performance and Reliable Measurements
• 0.02% basic DC accuracy
• Large display with 50,000 counts
• Dual display for double indication for AC and DC, V and Hz, etc.
• True-RMS Measurements AC and AC+DC
• Wide AC Frequency bandwidth from 10Hz to 100kHz *
• True-RMS or MEAN value detection mode can be selected *
• Fast Peak Hold response time of 250µs
• Low-pass filter for motor drive measurements *
• Low Power Ω for resistance measurements on sensible electronic circuits by a low and safe test current *
• User calibration function
* Only for KEW 1062
Safety design for industrial use
• Complies with IEC 61010-1 CAT.III 1000V, CAT.IV 600V
• Terminal shutter to prevent incorrect test leads' insertion in current terminals
• Very wide operating temperature range from -20 to 55ºC
Reliable support for data management
• Large data internal memory
  KEW 1062: 10,000 data (logging), 100 data (manual)
  KEW 1061: 1,000 data (logging), 100 data (manual)
• Download data and Live Monitoring on a PC via the USB interface
(Option for USB Communication set)



  KEW 1061 KEW 1062
Detection mode RMS MEAN/RMS (switch)
DC V 50.000/500.00/2400.0mV/5.0000/50.000/500.00/1000.0V
(Input impedance: Approx. 100MΩ [50/500/2400mV], 10MΩ [5/50/500/1000V])

|±0.02%rdg±2dgt (Basic accuracy)
AC V
[RMS]		 50.000/500.00mV/5.0000/50.000/500.00/1000.0V
(Input impedance: 11MΩ<50pF [50/500mV/5V], 10MΩ<50pF [50/500/1000V])
|±0.7%rdg±30dgt (Basic accuracy) |±0.4%rdg±30dgt (Basic accuracy)
AC V
[MEAN] *		 -- 50.000/500.00mV/ 5.0000/50.000/500.00/1000.0V
(Input impedance:
11MΩ<50pF [50/500mV/5V],
10MΩ<50pF [50/500/1000V])

|±1%rdg±30dgt (Basic accuracy)
DCV+ACV 5.0000/50.000/500.00/1000.0V
(Input impedance: 11MΩ<50pF [5V], 10MΩ<50pF [50/500/1000V])
|±1%rdg±10dgt (Basic accuracy) |±0.5%rdg±10dgt (Basic accuracy)
DC A 500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A

|±0.2%rdg±5dgt (Basic accuracy)
AC A
[RMS]		 500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A
|±1%rdg±20dgt (Basic accuracy) |±0.75%rdg±20dgt
|(Basic accuracy)
AC A
[MEAN] *		 -- 500.00/5000.0µA/50.000/500.00mA/ 5.0000/10.000A

|±1.5%rdg±20dgt (Basic accuracy)
DCA+ACA 500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A
|±1.5%rdg±10dgt (Basic accuracy) |±1%rdg±10dgt (Basic accuracy)
Ω 500.00Ω/5.0000/50.000/500.00kΩ/5.0000/50.000MΩ
|±0.1%rdg±2dgt (Basic accuracy) |±0.05%rdg±2dgt (Basic accuracy)
LowPower-Ω * -- 5.000/50.00/500.0kΩ/5.000MΩ

|±0.2%rdg±3dgt (Basic accuracy)
Continuity buzzer 500.0Ω (The buzzer turns on for resistances lower than 100±50Ω)
Diode test 2.4000V|±1%rdg±2dgt
Open curcuit voltage: <5V (Approx. 0.5mA Measuring Current)
Capacitance 5.000/50.00/500.0nF/5.000/50.00/500.0µF/5.000/50.00mF

|±1%rdg±5dgt (Basic accuracy)
Frequency 2.000~9.999/9.00~99.99/90.0~999.9Hz/0.900~9.999/9.00~99.99kHz

|±0.02%rdg±1dgt (Basic accuracy)
DUTY 10~90%|±1%rdg
Temperature -200~1372ºC|±1%rdg±1.5ºC
-328~2501.6ºF|±1%rdg±2.0ºF
(with the use of K-type Temperature probe)
Measurement
functions		 DC Voltage, AC Voltage, DC Current, AC Current, Resistance, Frequency, Temperature, Capacitor, Duty cycle ratio, Decibel (dBV, dBm), Continuity Check, Diode Test, LowPower-Ω *
Other functions Data Hold (D/H), Auto Hold (A/H), Peak Hold * (P/H), Range Hold (R/H), Maximum value (MAX), Minimum value (MIN), Average value (AVG), Zero Adjustment (Capacitor, Resistance), Relative values, Save to Memory, LCD backlight
Withstand voltage 6,880V/5 sec.
Applicable
standards		 IEC 61010-1 CAT.IV 600V, CAT.III 1000V Pollution degree 2,
IEC 61010-031, IEC 61326-1 (EMC)
Power source R6P (1.5V)×4 (Auto power off: approx. 20 minutes)
Dimensions 192(L)×90(W)×49(D) mm
Weight Approx. 560g (including batteries)
Accessories 7220A (Test leads), R6P×4, Instruction manual,
8926 (Fuse [440mA/1000V])×1 (included)
8927 (Fuse [10A/1000V])×1 (included)
* Only for KEW 1062



















KEW 1051 KEW 1052
Detection mode RMS MEAN/RMS (switch)
DC V 600.0mV/6.000/60.00/600.0/1000V
(Input impedance: 10MΩ [600mV/60/600/1000V], 11MΩ [6V])

|±0.09%rdg±2dgt (Basic accuracy)
AC V [RMS] 600.0mV/6.000/60.00/600.0/1000V
(Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V],
10MΩ<50pF [60/600/1000V])

|±0.5%rdg±5dgt (Basic accuracy)
DC A 600.0/6000µA/60.00/440.0mA/6.000/10.00A

|±0.2%rdg±2dgt (Basic accuracy)
AC A [RMS] 600.0/6000µA/60.00/440.0mA/6.000/10.00A

|±0.75%rdg±5dgt (Basic accuracy)
Ω 600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ

|±0.4%rdg±1dgt (Basic accuracy)
Continuity buzzer 600.0Ω (The buzzer turns on for resistances lower than 50±30Ω)
Diode test 2.000V|±1%rdg±2dgt
Open curcuit voltage: <3.5V (Approx. 0.5mA Measuring Current)
Capacitance 10.00/100.0nF/1.000/10.00/100.0/1000µF

|±2%rdg±5dgt (Basic accuracy)
Frequency 10.00~99.99/90.0~999.9Hz/0.900~9.999/9.00~99.99kHz

|±0.02%rdg±1dgt (Basic accuracy)
Temperature -50~600ºC|±2%rdg±2ºC (with the use of K-type Temperature probe)
Other functions Data Hold (D/H), Auto Hold (A/H), Range Hold (R/H),
Maximum value (MAX) *, Minimum value (MIN) *, Average value (AVG) *, Zero Adjustment (Capacitor, Resistance), Save to Memory *,
LCD backlight
Withstand voltage 6,880V/5 sec.
Applicable
standards		 IEC 61010-1 CAT.IV 600V, CAT.III 1000V Pollution degree 2,
IEC 61010-031, IEC 61326-1 (EMC)
Power source R6P (1.5V)×4 (Auto power off: approx. 20 minutes)
Dimensions 192(L)×90(W)×49(D) mm
Weight Approx. 560g (including batteries)
Accessories 7220A (Test leads), R6P×4, Instruction manual,
8926 (Fuse [440mA/1000V])×1 (included)
8927 (Fuse [10A/1000V])×1 (included)
* Only for KEW 1052
